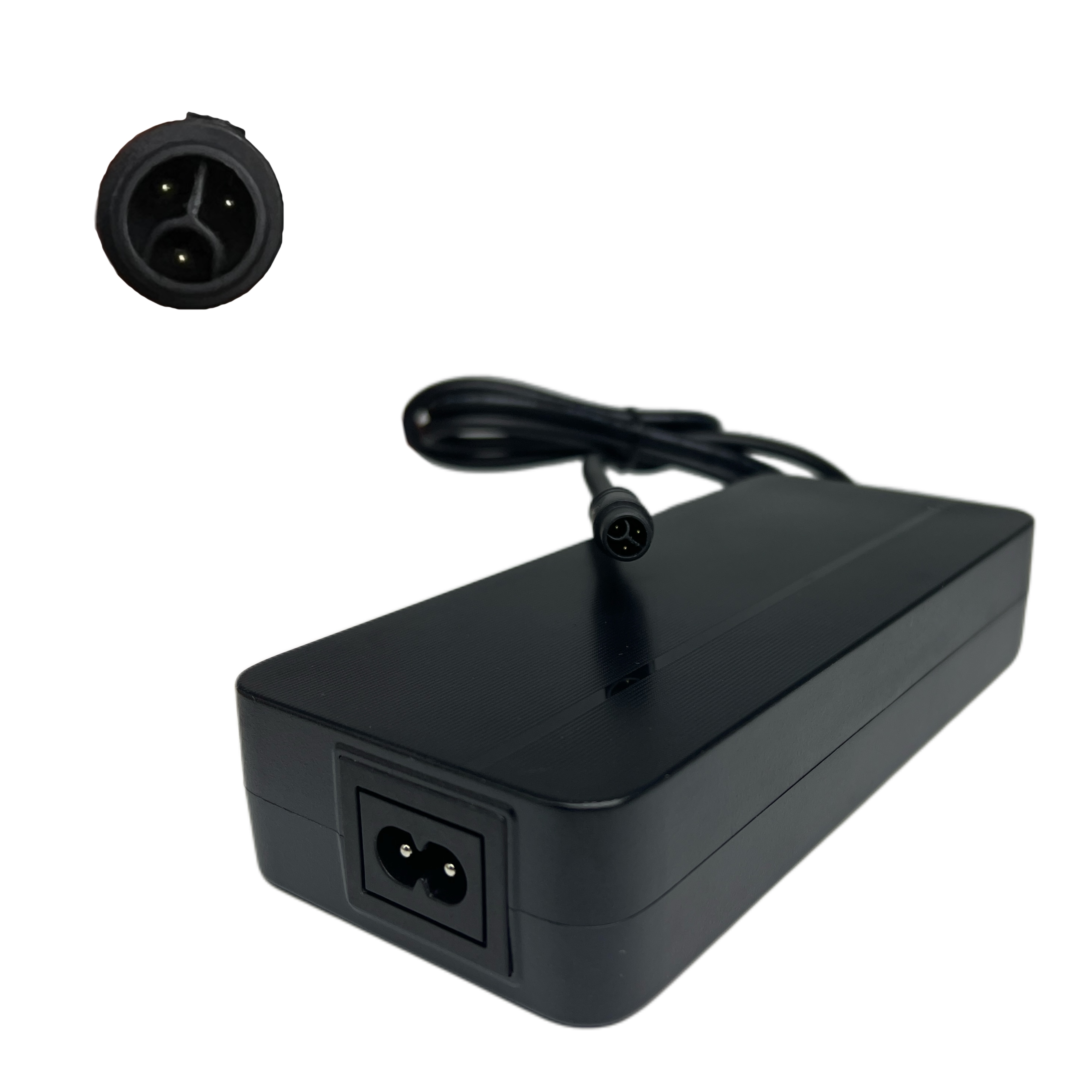

88W Series New Design Fast Charging Electric Bike Charger for Scooter High Quality Charger

型号
Model

LK150-1260600

1680500

2520300

2940300

4200200

5460150

6720130

7200100

(XXX=042-720,代表输出电压，范围从4.2-72V；YYYY=0100-0600,代表输出电流，范围从1.0A-6.0A)
XXX=042-720,refer to output voltage,range from 4.2-72V;YYYY=0100-0600,refer to output current,range from1.0A-6.0A)

最大功率
Max Power

90W

输入电压范围
Iuput Voltage Range

调整范围：AC 90-264V(电压低于120V市电，请保留30%左右输出功率余量) 标准电压：100-240VAC
Adjust Range:AC90-264V(Please leave 30%output power when the voltage less than 120V city electric);Standard Voltage:100-240V AC

输出电压范围
Output Voltage Range

12.6V

16.8V

25.2V

29.4V

42V

54.6V

67.2V

72V

输出电流范围
Output Current Range

6.0A

5.0A

3.0A

3.0A

2.0A

1.5A

1.3A

1.0A

外观尺寸
Appearnce Size

145.3*59.8*32.2mm

安规认证
Safety Certificate

CCC.CE.FCC.ROHS.ETL.KC.CB.PSE
