TECHNICAL PARAMETER
Input voltage | 100-240V |
Input voltage range | 90-300V |
AC input frequency | 50-60Hz |
Power factor | ≥0.98 |
Size | 187*106*110mm |
Full load efficiency | ≥92% |
Cooling method | air cooling |
Protection level | IP65/P67 |
Noise | ≤ 45dB |
Weight | 2.6kg |
RELIABLE
The charger adopts MCU intelligent control andpulse widthmodulation(PWM)technology,andthe application ofnew technologles such as activePFC and LLC circuits.With reliable hardware andhigh-quality sofware support,it achieves highstability,safetychargingefficiency,goodandreliability,and long service life.
SECURE

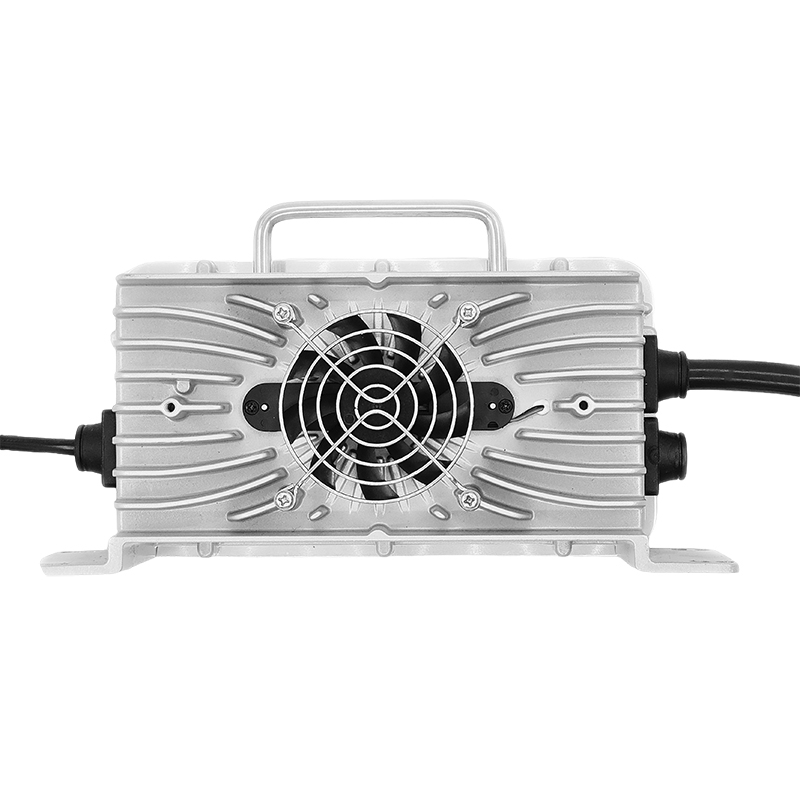

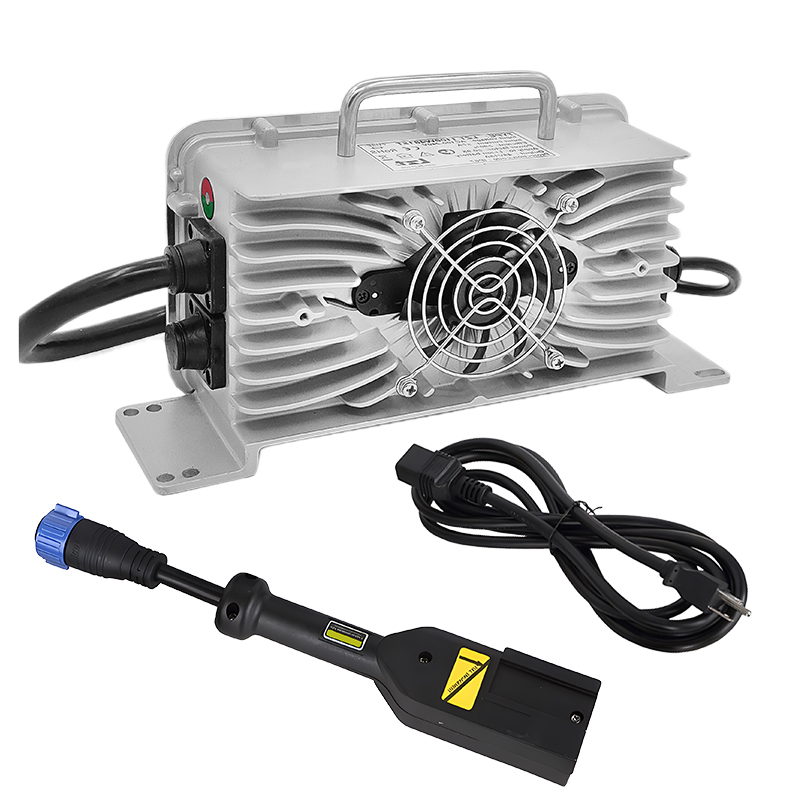

Adopting a sealed heat dissipation profle aluminumshellthe interior adopts a glue filling process,and theprotection level can reach lP66.The waterproofdustproof,and shockproof products have strongadaptability and can be used in harsh environments.
Model | Specifications | Reference output voltage | Output current |
LK 500W1220T | 12V20A | 14.6V DC | 220V@20A、110V@20A |
LK 500W2418T | 24V18A | 29.4V DC | 220V@18A、110V@18A |
LK 500W3612T | 36V12A | 42V DC | 220V@12A、110V@12A |
LK 500W4808T | 48V8A | 58.4V DC | 220V@8A、110V@8A |
LK 500W6007T | 60V7A | 73V DC | 220V@7A、110V@7A |
LK 500W7206T | 72V6A | 84V DC | 220V@6A、110V@6A |
LK 800W1230T | 12V30A | 14.6V DC | 220V@30A、110V@30A |
LK 800W2420T | 24V20A | 29.4V DC | 220V@20A、110V@15A |
LK 800W2425T | 24V25A | 29.4VDC | 220V@25A、110V@20A |
LK 800W3618T | 36V18A | 42V DC | 220V@18A、110V@15A |
LK 800W4815T | 48V15A | 58.4V DC | 220V@15A、110V@12A |
LK 800W6012T | 60V12A | 73V DC | 220V@12A、110V@10A |
LK 800W7210T | 72V10A | 84V DC | 220V@10A、110V@8A |
