How to Choose the Right Connector for a Custom Battery Charger

Choosing the right connector is an important part of selecting a battery charger. Even when the output voltage and current match, an incompatible connector or pin configuration can prevent the charger from working correctly.

For battery brands, equipment manufacturers, distributors, and repair service providers, understanding different charger connectors helps reduce compatibility issues and makes custom charger sourcing more efficient.

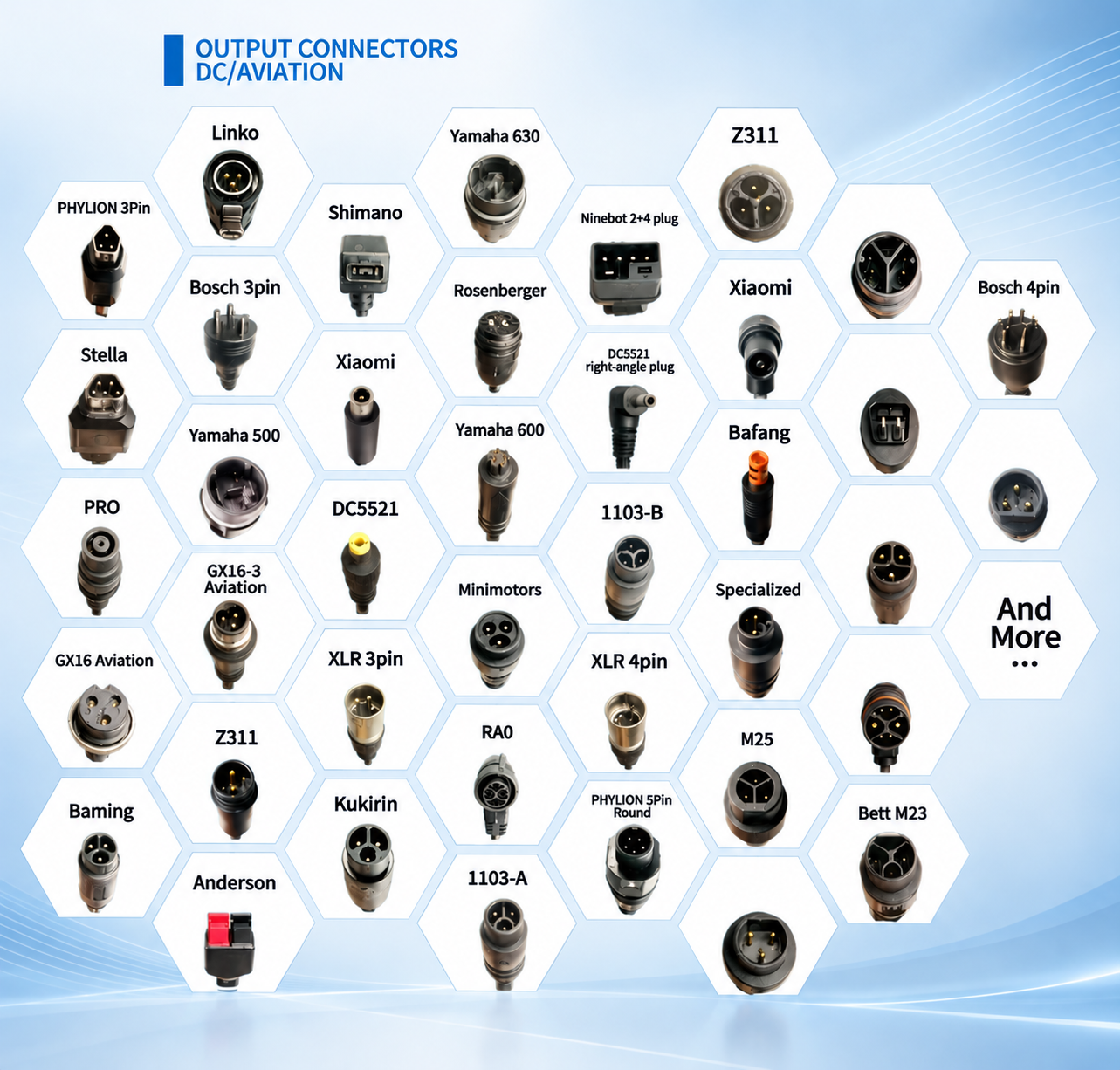

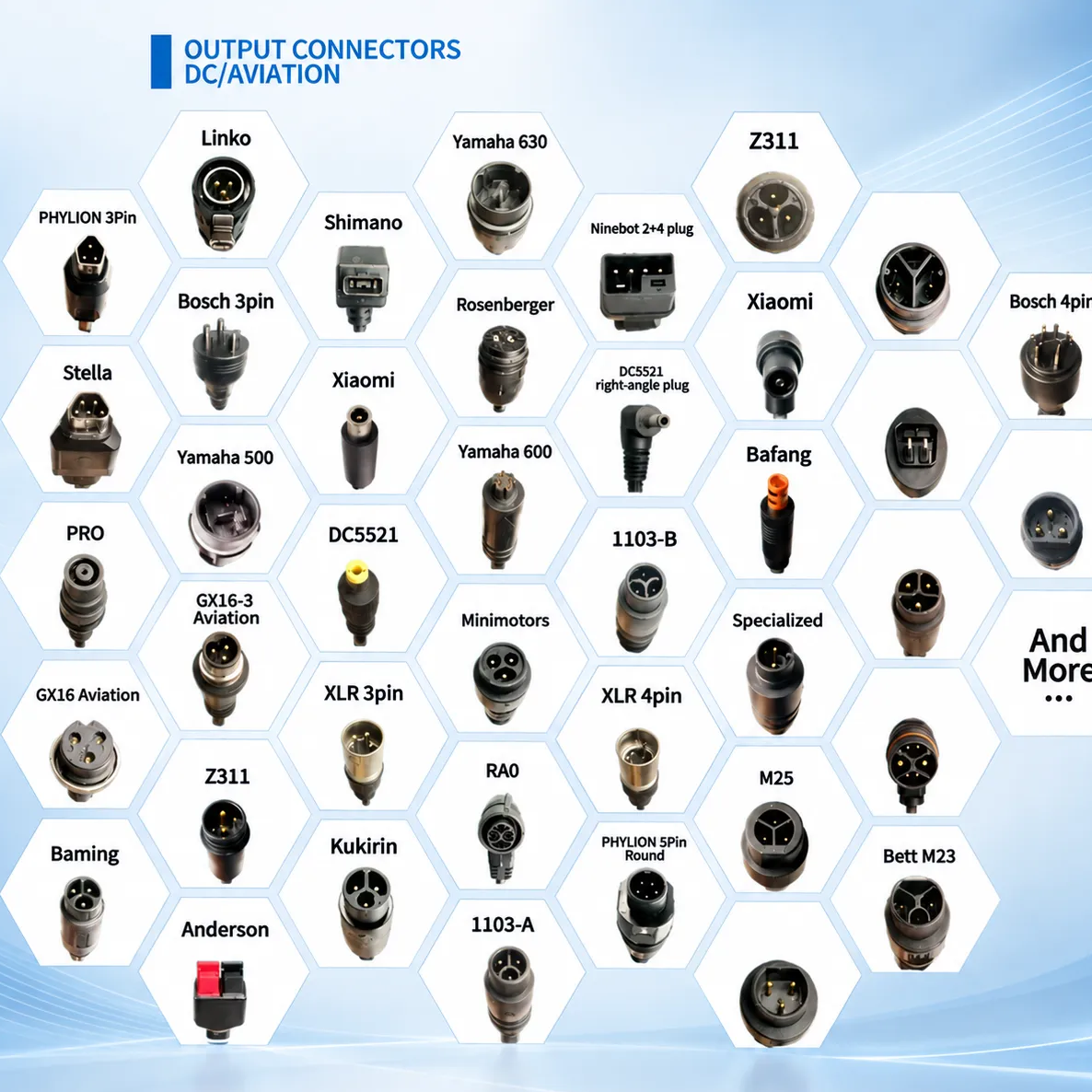

1. Common Connector Types for Battery Chargers

Different devices use different connector types. The following are some common options for battery chargers:

• DC5521 and DC5525: Common DC barrel connectors used in various electronic devices and low-power applications. The dimensions must be checked carefully because similar-looking connectors may not be interchangeable.

• GX16: A circular connector used in certain battery-powered equipment and charging applications.

• Anderson connectors: Commonly used in some battery systems and higher-current applications. The connector size and configuration should match the equipment requirements.

The correct connector depends on the device, electrical specifications, and intended application. Appearance alone is not enough to confirm compatibility.

2. Specialized Connectors for Different Devices

Some devices require specific connector types rather than standard DC connectors.

Examples include:

• Xiaomi-style connectors

• XLR 3-pin connectors

• XLR 4-pin connectors

• L9 connectors

• Stella connectors

These connectors can differ in dimensions, pin configuration, and electrical connections. Before ordering a replacement or custom charger, confirm the exact connector type and its compatibility with the target device.

3. Connectors for E-Bike and Mobility Chargers

Electric bikes and mobility equipment may require chargers compatible with specific battery systems or device models. Lilon ChargeTech provides third-party replacement and customized charger solutions for compatible applications, including:

• PHYLION-compatible chargers for supported 3-pin and 5-pin connectors

• Shimano-compatible chargers

• Bosch-compatible chargers for supported 3-pin connections

• Chargers compatible with selected Yamaha connector types

• Chargers compatible with selected Rosenberger connector types

Compatibility depends on the specific device and battery model, connector configuration, polarity, charging voltage, current, and any applicable communication requirements. Connector appearance alone does not guarantee compatibility.

4. What to Check Before Ordering a Custom Charger

Before sourcing a custom battery charger, confirm the following details:

•  Connector dimensions


•  Pin configuration and polarit


• Charging voltage and current


• Cable length and direction


•  Device model and original charger information

5. Custom Connector Solutions for OEM Battery Chargers

For battery brands, equipment manufacturers, and charger distributors, a custom charger may need to meet specific requirements for connectors, output parameters, cables, labels, and packaging.

Lilon ChargeTech provides battery charger manufacturing and OEM/ODM customization services. Connector selection and charger specifications can be evaluated according to the target device and application.

To request a suitable charger solution, provide:

• Device or battery model

• Required output voltage and current

• Connector photos and, if available, dimensions

• Original charger specifications or label

• Any special cable, labeling, or packaging requirements

Contact Lilon ChargeTech with your requirements to find a suitable custom battery charger solution.
