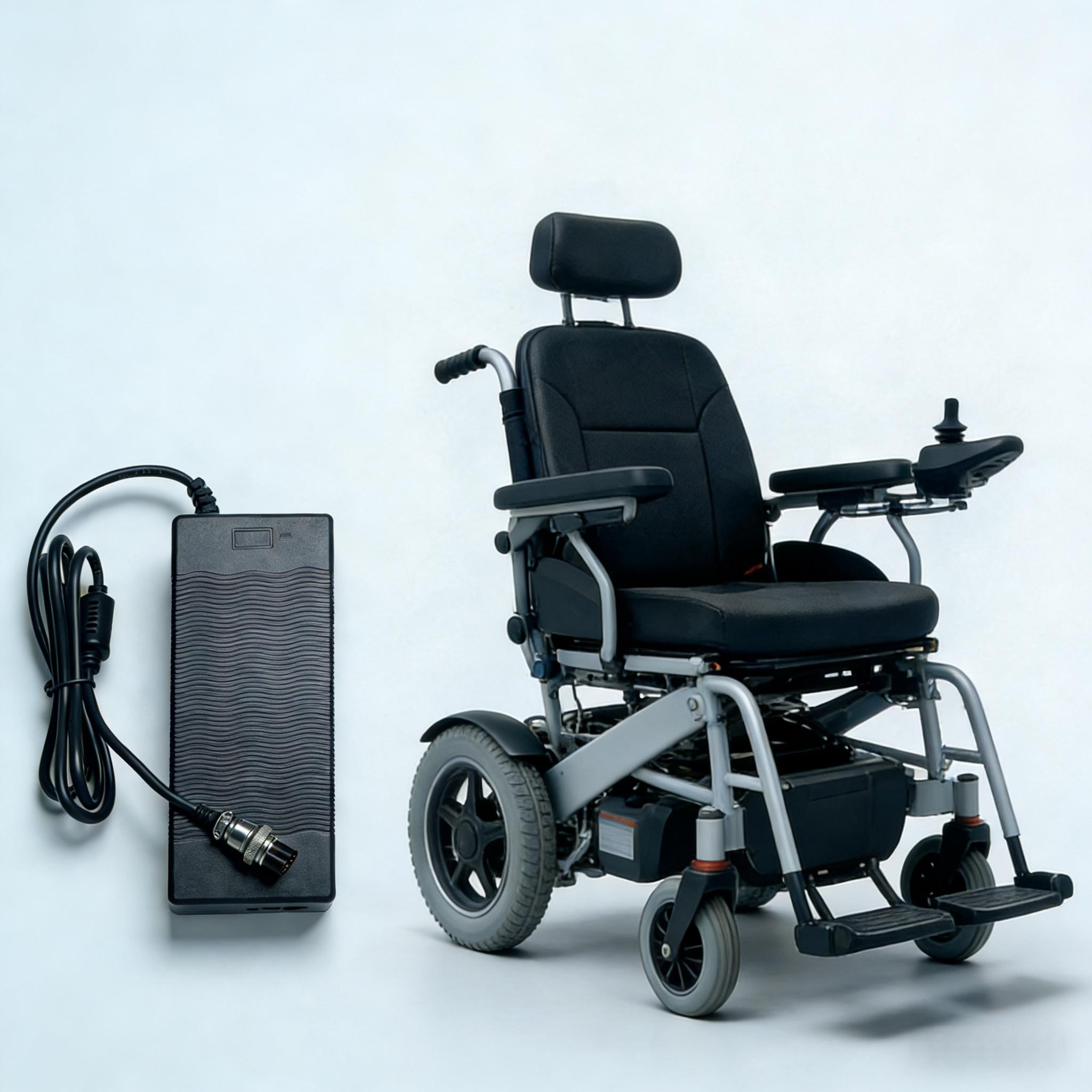

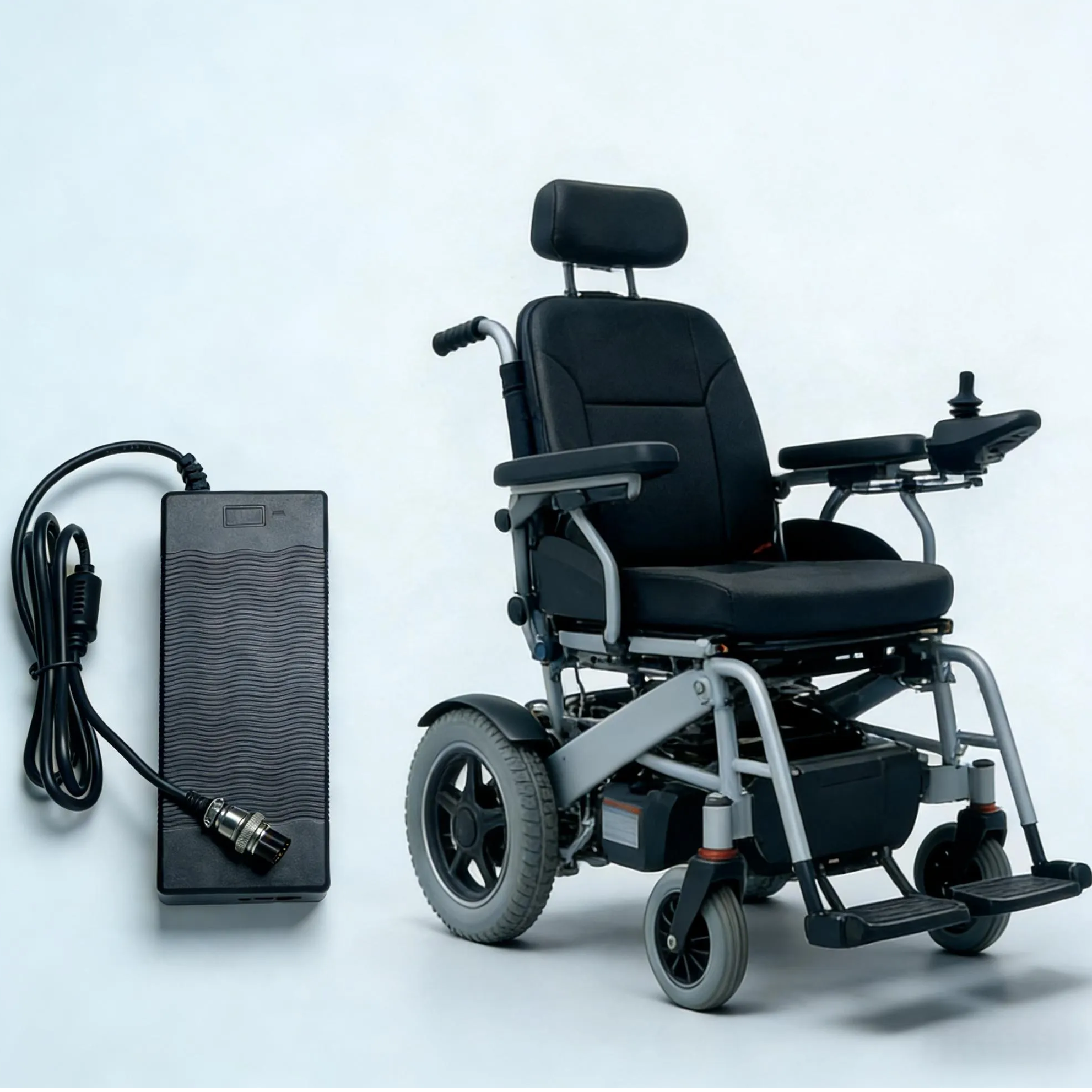

How To Choose The Right Replacement Charger for An Electric Wheelchair

Choosing a replacement electric wheelchair charger requires more than matching the plug. The output voltage, charging current, battery type, and connector configuration must all meet the battery manufacturer's requirements.

For wheelchair distributors, repair shops, and equipment manufacturers, checking these specifications before ordering can help avoid compatibility issues and unnecessary returns.

1. Match the Charging Voltage to the Battery

Many electric wheelchairs use 24V battery systems, but the charger's output voltage is usually different from the battery's nominal voltage.

The required charging voltage depends on the battery chemistry and configuration. Always check the original charger's label or the battery manufacturer's specifications before selecting a replacement.

Tip: Never choose a charger based on nominal battery voltage alone.

2. Choose the Appropriate Charging Current

A higher charging current is not always better. Excessive charging current may increase battery stress and affect battery life.

The appropriate current depends on battery capacity, battery chemistry, and the manufacturer's recommended charging parameters.

For many electric wheelchair applications, a typical charging time is around 8–10 hours, although the actual time varies with battery capacity, charger output, and charging conditions.

For OEM projects, charging voltage and current can be customized according to the battery requirements and the customer's application.

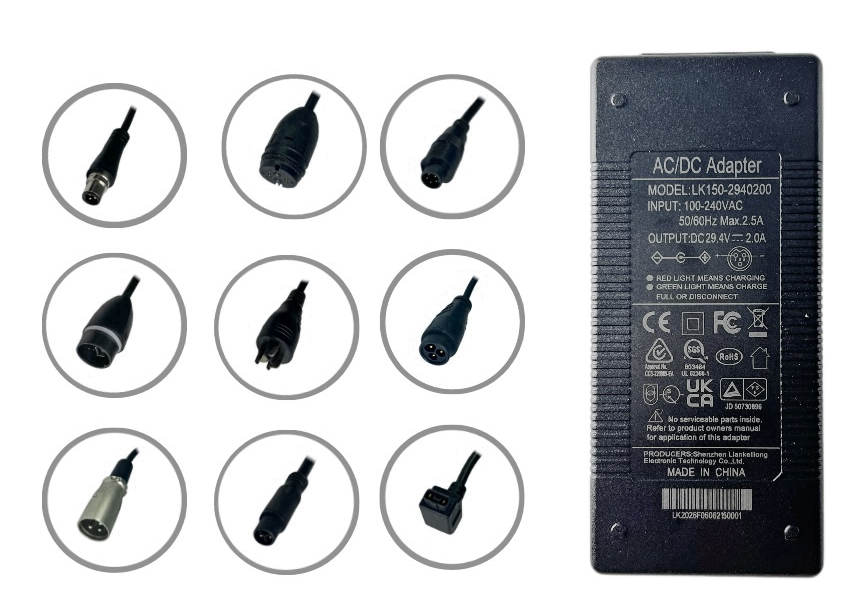

3. Check the Connector and Polarity

The connector must match the wheelchair's charging port, but physical fit alone does not guarantee compatibility.

Check the following details:

• Connector type and size

• Pin configuration

• Positive and negative polarity

• Any additional identification or communication contacts

If the original charger is unavailable, provide the supplier with the wheelchair model, battery label, and photos of the charging connector for verification.

For OEM orders, connector type, cable length, and other configuration details may be customizable.

4. Confirm Battery Type and Charging Compatibility

Electric wheelchairs may use sealed lead-acid or lithium batteries. These battery types can require different charging profiles.

For lithium batteries, the charger must be compatible with the battery chemistry and the applicable battery management system (BMS).

Before ordering, confirm the battery type and its recommended charging specifications. A charger should not be considered compatible simply because its voltage appears similar.

5. What Should You Check Before Ordering?

Before purchasing a replacement charger, prepare the following information:

• Wheelchair brand and model

• Battery type and nominal voltage

• Required charging voltage and current

• Connector type and polarity

• AC input voltage and destination market

For larger orders, also confirm applicable certifications, labeling, packaging, and sample-testing requirements.

Providing complete specifications helps the supplier evaluate compatibility and recommend a suitable charger configuration.
