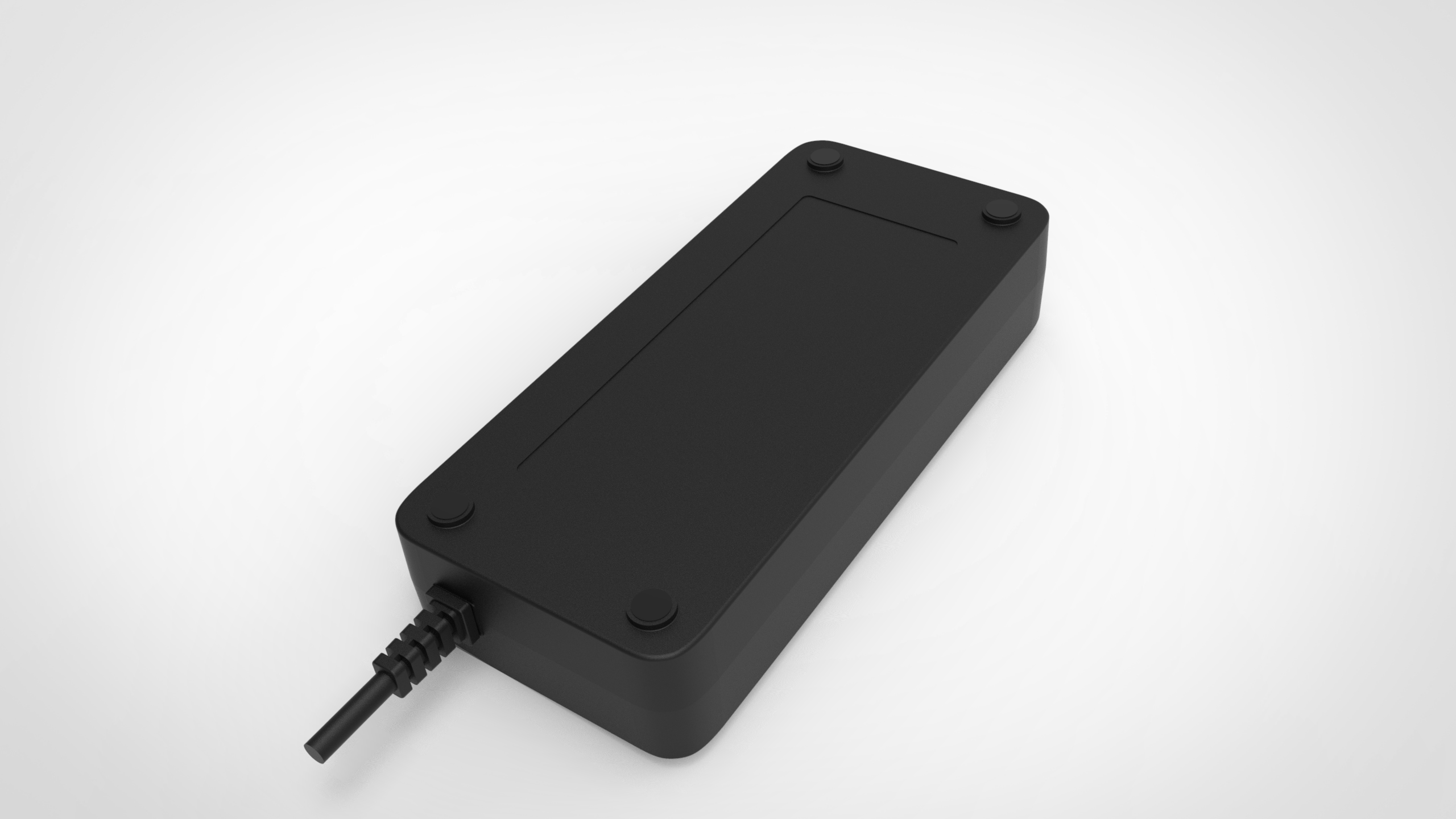

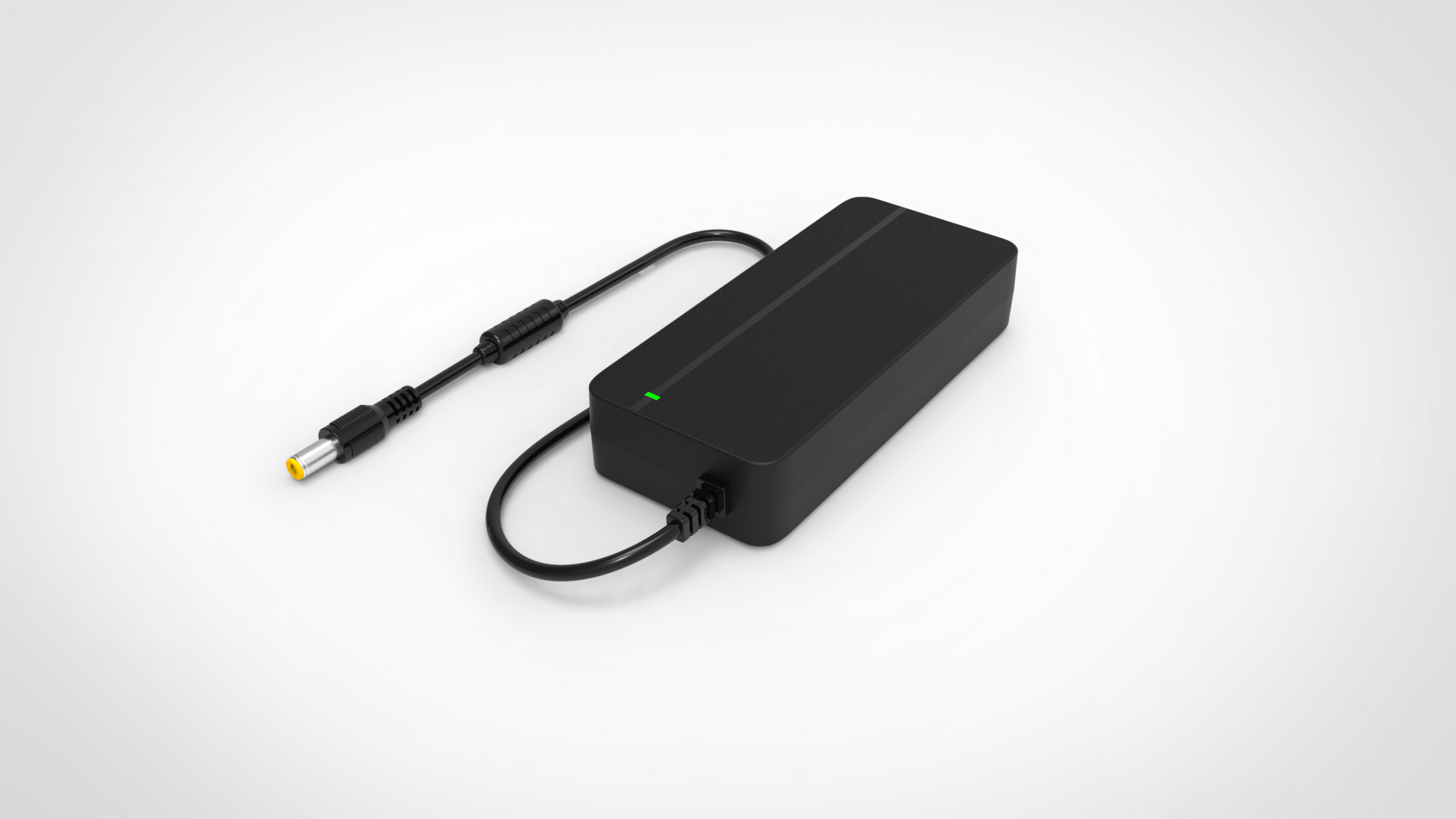

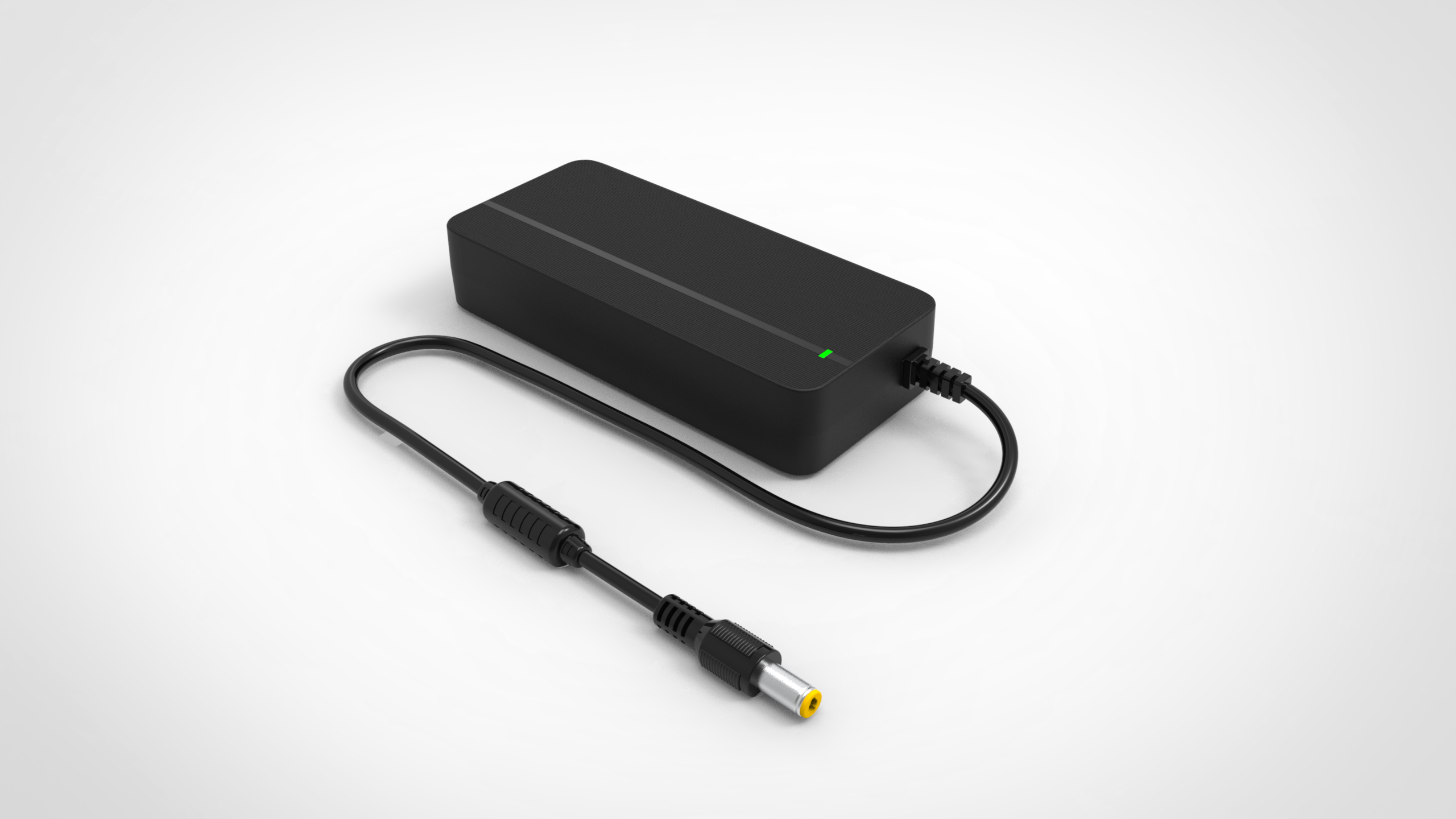

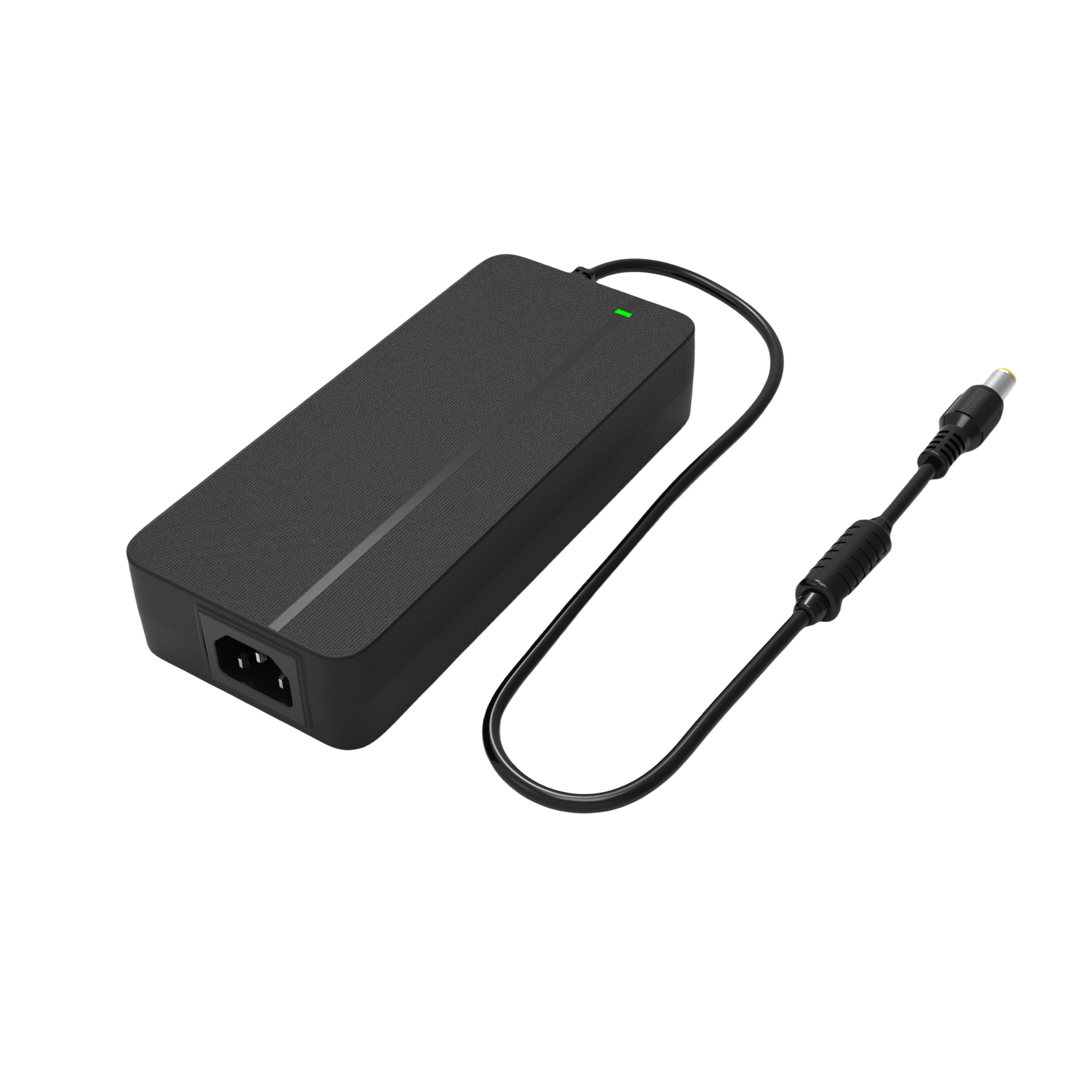

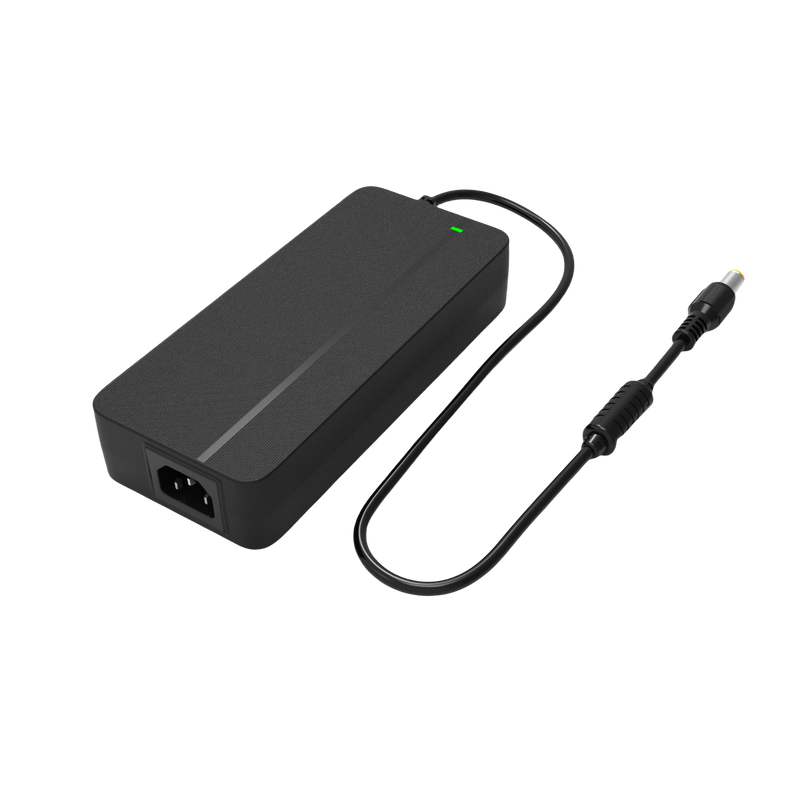

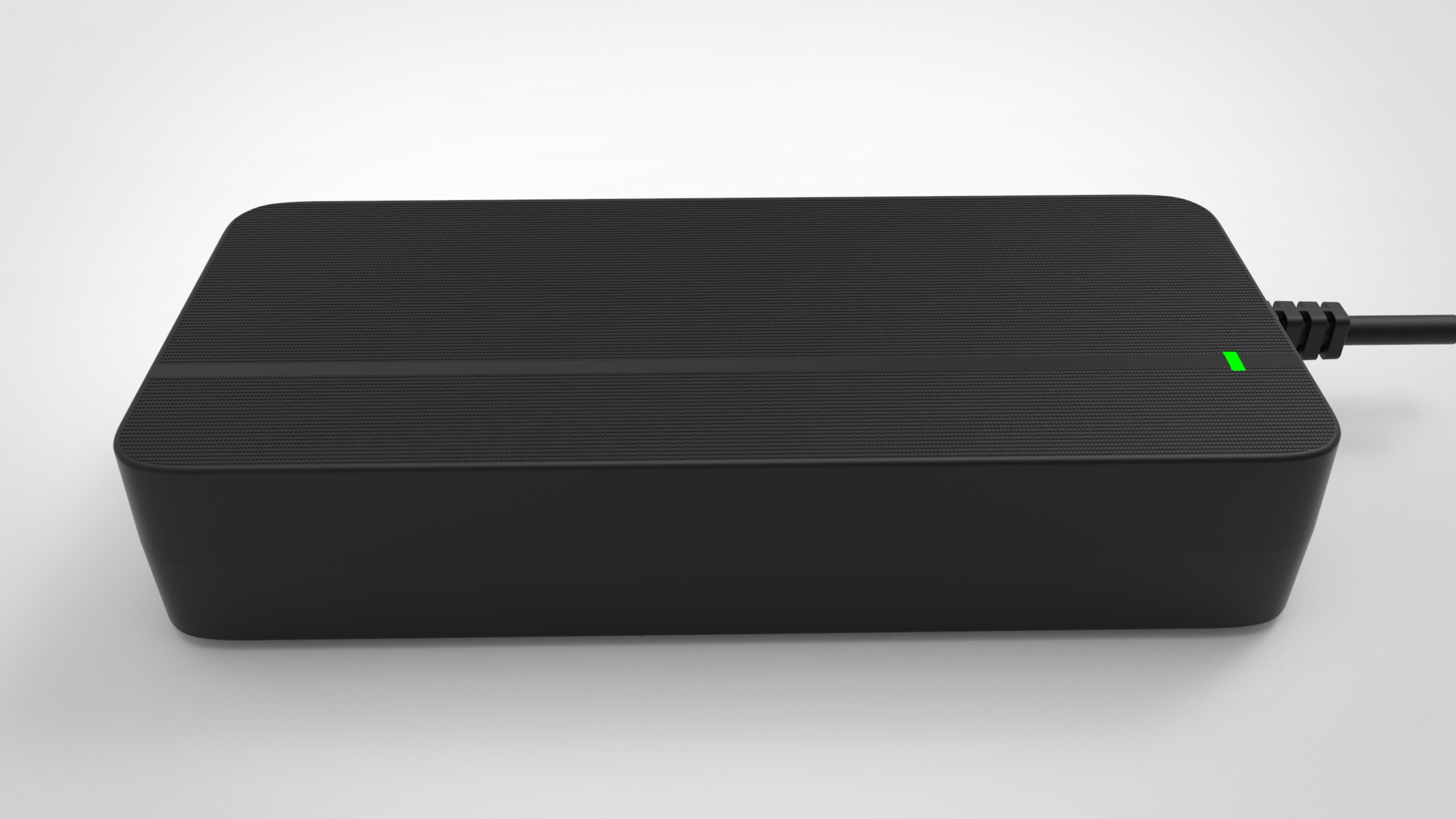

135W/168W/248W Lithium Battery Charger - NEW DESIGN

Home » Products » Output Voltage » 12V Lithium Battery Charger » 135W/168W/248W Lithium Battery Charger - NEW DESIGN

135W/168W/240W Lithium Battery Charger - NEW DESIGN

Share to:

135W/168W/248W Lithium Battery Charger - NEW DESIGN

√ Red and green LED indicators for charging status
√ Two-stage charging characteristics
√ Universal AC input range
√ No-load power consumption<1.5W
√ Protection features:Short-circuit,over-voltage,under-voltage,over-current,reverse polarity,and backflow
√ Natural air cooling
√ 3-year warranty
√ Safety certifications:CCC,CE,FCC,ROHS,ETL,KC,CB,PSE

Availability:

Quantity:



Inquire Add to Basket

Certifications:CCC,CE,FCC,ROHS,ETL,KC,CB,PSE

For more details, please contact us at info@liloncharger.com

Model

LK150-

1261000

168YYYY

200YYYY

220YYYY

252YYYY

294YYYY

336YYYY

378YYY

420YYYY

546YYY

576YYY

588YYY

XXX-042-672 represents the output voltage,ranging from 4.2 to 67.2Vdc. YYYY=0050-0600 represents tne output current,ranging trom 0.5A to 10.0A.

Max Power

135W

Input Voltage

Adjustment range:AC 90-264V(For mains voltage below 120V,please reserve about 30%of output power capacity) Standard voltage:100-240VAC

Output Voltage

Range

12.6V

16.8V

20V

22V

25.2V

29.4V

33.6V

37.8V

42V

54.6V

57.6V

58.8V

Output Current

Range

10.0A

7.0A

5.0A

4.0A

3.5A

3.0A

2.0A

Size

172*72.5*33MM

Safety certificate

CCC、CE、FCC、ROHS、ETL、KC、CB、PSE

Model	LK150-1261200	1681000	2520600	2940600	4200400	5460300	6720300	7200230
	(XXX=042-672，Represents the output voltage, ranging from 4.2 to 67.2Vdc:YYYY=0050-0600, represents the output current, ranging from 0.5A to 6.0A)
Max.Power	168W
Input Voltage	Adjustment range: AC 90-264V(If the voltage is lower than 120V mains, please reserve about 30% of the output power margin). Standard voltage: 100-240VAC
Output Voltage Range	12.6V	16.8V	25.2V	29.4V	42V	54.6V	67.2V	72V
Output Current Range	12A	10A	6.0A	6.0A	4.0A	3.0A	3.0A	2.3A
Size	1727634.5mm
Safety certificate	CCC、CE、FCC、ROHS、ETL、KC、CB、PSE

Model	LK150-1261500	1681300	2520900	2940900	4200500	5460400	6720400	7200300
	(XXX=042-672，Represents the output voltage, ranging from 4.2 to 67.2Vdc:YYYY=0050-0600, represents the output current, ranging from 0.5A to 6.0A)
Max.Power	248W
Input Voltage	Adjustment range: AC 90-264V(If the voltage is lower than 120V mains, please reserve about 30% of the output power margin). Standard voltage: 100-240VAC
Output Voltage Range	12.6V	16.8V	25.2V	29.4V	42V	54.6V	67.2V	72V
Output Current Range	15A	13A	9.0A	9.0A	5.0A	4.0A	4.0A	3.0A
Size	185.476.538.5mm
Safety certificate	CCC、CE、FCC、ROHS、ETL、KC、CB、PSE
