How To Choose A Lithium Iron Phosphate E-bike Charger To Keep Your E-bike Battery Safe And Healthy

E-bike users are all aware of the frustration of a dead battery while riding. But apart from the issue of battery range, riders must also consider choosing a charger. The type of charger you use, especially for e-bikes with lithium iron phosphate (LiFePO4) batteries, is extremely important because it affects battery life and safety. Lithium iron phosphate (batteries) are an excellent battery choice as they are very durable and safe, but these benefits can only be experienced with a compatible charger. A charger can have the opposite effect on an LFP battery compared to what the LFP battery is designed for. Why can't lithium phosphate batteries use just any charger? When it comes to charging, lithium iron phosphate batteries are different from ordinary lithium-ion batteries. Lithium iron phosphate batteries must be charged according to the defined constant current (CC) to constant voltage (CV) protocol, and the charging voltage must be accurate.

For example, for 12 36-volt lithium iron phosphate batteries, the charging terminal voltage is 43.8 volts, while for 16 48-volt batteries, the charging terminal voltage is 58.4 volts. Standard lithium battery chargers do not have this layer of control, which can result in undercharging or overloading the battery. This can have a negative impact on battery life and may even pose a safety hazard. Dedicated lithium iron phosphate chargers, such as Lilon's products, can control charging voltage and current to meet battery needs, keeping the battery at optimal health and function. There are three main factors when choosing a lithium phosphate electric bicycle charger: Voltage and current: The voltage of the charger must be equal to the voltage of the battery. Therefore, if you are using a 48-volt lithium iron phosphate battery, you must use a 48-volt charger. A 36V charger is not sufficient for charging, and a 52V charger is likely to damage the battery. Likewise, you need to be careful when choosing the current: 1-2A charging: This is a slow charge, suitable for charging at night, and can provide a certain battery life. 2-3A Charging: Suitable for most daily riders, provides moderate charging speeds. A 48-volt, 20-amp battery can be fully charged in about 8-10 hours.

3A: Suitable for players who use it frequently and want a fast charging experience. However, while charging may be faster, be aware that battery life may take a long-term hit. Professional charging advice suggests that the current should be approximately 10% of battery capacity. For example, a 20 amp battery should be charged with 2 amps of current. Battery safety should be taken very seriously, as fires at electric bicycle charging stations often occur. This is mainly due to the use of poor quality chargers with insufficient safety features. A good lithium iron phosphate charger should have the following safety features: overvoltage protection to prevent overcharging; overcurrent protection to prevent overcharging; overheating protection to prevent the charger from overheating; short circuit protection to prevent the battery from short circuiting; and backup protection to prevent the battery from being damaged when the rear protection is inserted. In addition, UL, CE and FCC certified chargers guarantee compliance with international safety standards. When choosing a charger, make sure the charger's connector is compatible with the battery.

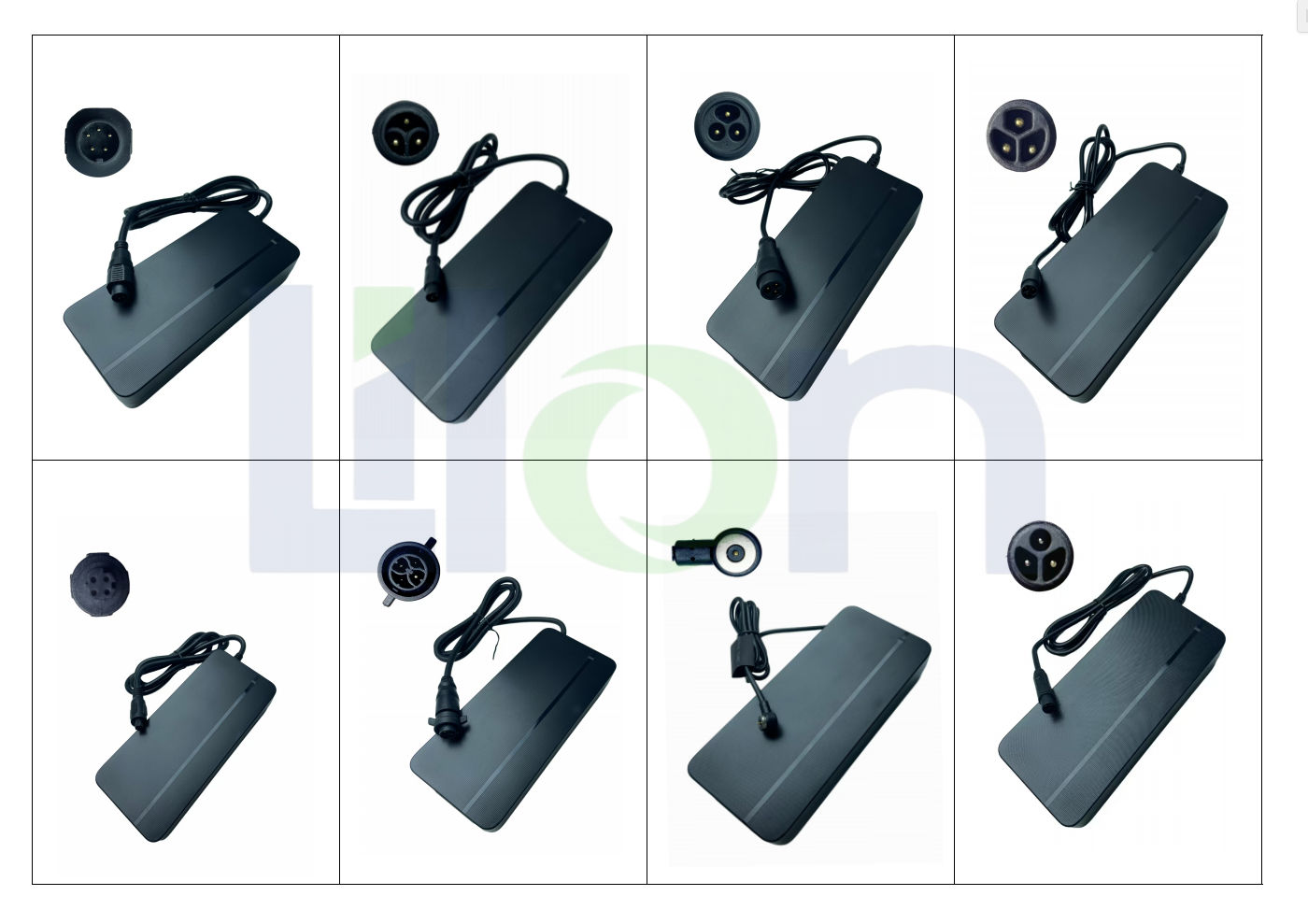

Standard AC interfaces for 36V/48V batteries, aviation interfaces for high-performance electric bicycles, and older electric bicycles with round or square interfaces are all typical interface types. If you own multiple electric bikes or plan to replace the batteries, it is recommended to purchase a charger with interchangeable interfaces. You don’t need to buy a new charger every time you change the battery. Here are 5 things to consider when using a lithium iron phosphate charger to extend battery life.
1. Charge the battery at the correct temperature. For iron phosphate batteries, charging at temperatures below 0°C and above 35°C should be avoided. Extreme temperatures can exacerbate battery aging and negative charging effects. Therefore, it is best to charge the battery at the correct temperature.
2. Do not allow the battery to completely discharge. Although traditional lithium batteries have shorter life and cycle life than iron phosphate batteries, a complete discharge is not ideal. To maximize battery life and health, it's best to charge when the remaining power is 20%-30%.




Charging time should be limited to less than 1 hour after a full charge to avoid; long charging can also damage the battery, but most modern chargers have an automatic shutdown feature to prevent this. Clean the charging port; the charging port and cable can collect dust and other materials that hinder charging, so it's a good habit to clean the charging support regularly to prevent potential safety hazards. Take care of your charger; long-term storage of chargers should be placed in a dry, cool, sunlight-free and humid environment

Lilon lithium iron phosphate charging devices have been widely praised by customers as their preferred choice for lithium iron phosphate charging equipment, for several reasons. Featuring a lithium iron phosphate design, these devices deliver precise and reliable charging performance, effectively extending battery life.

Comprehensive safety protection: Enhanced security with international certifications including UL, CE, and FCC, featuring protection against overvoltage, overcurrent, overheating, and short circuits. Durable design: The charger utilizes reinforced, high-quality wiring. Superior value: Compared to other premium competitors, Lilon offers the best cost-performance ratio with superior performance at a lower price.

Many customers report using Lilon 48V 3A lithium iron phosphate (LFP) batteries for years, noting their excellent longevity without swelling or power outages, ensuring stable performance during every ride. Selecting the right LFP charger is essential for extending battery life and maintaining charging safety.

Investing in high-quality chargers means an increase in initial costs. However, it should be noted that this significantly reduces the frequency of battery replacements and enhances charging safety. This is because high-quality charging piles have a longer lifespan and are equipped with effective safety mechanisms.

Additionally, they often have superior charging performance. With advanced charging technology, excellent value for money and solid construction, Lilon's lithium iron phosphate charging charger is my first choice and the first choice of many e-bike riders

Any customer inquiries will be answered with the highest level of professionalism. You are welcome to consult at any time. We will ensure that you purchase the most suitable charger based on the specific needs of your battery.
